BLISTER EQUIPMENT

Form the cavity.
Protect the product.

Choose the product feed and forming material together. Confirm the cavity layout, lidding, sealing and cutting with the selected DPP configuration.

Compare blister configurations.

Supplier reference configuration; final appearance and options are confirmed for your project.

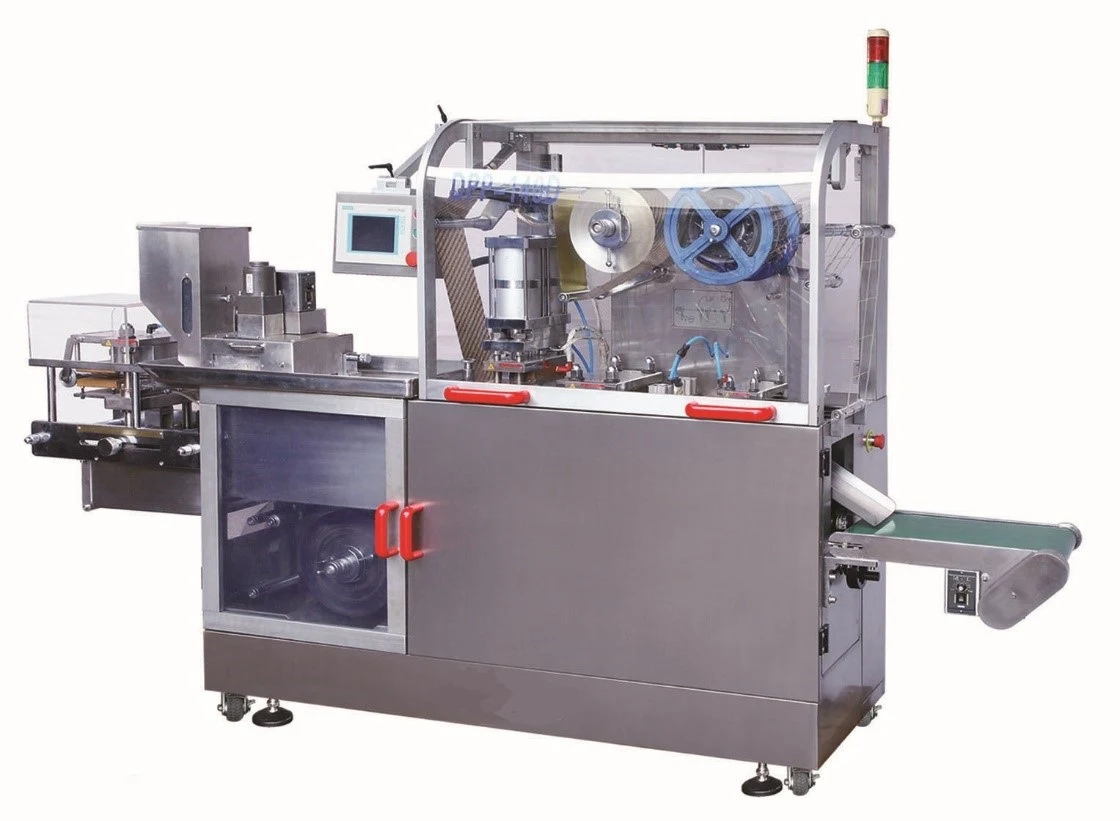

DPP-160

A smaller blister packing configuration with forming, feeding, heat sealing, coding and cutting stations.

Cutting frequency reference: 6–50 cycles/min
Maximum forming area: 160 × 130 mm
Maximum depth: 26 mm · standard 14 mm
Travel range: 40–160 mm

Output depends on the cavity and card layout. A standard 80 × 57 mm plate example in the source is not a rating for every product.

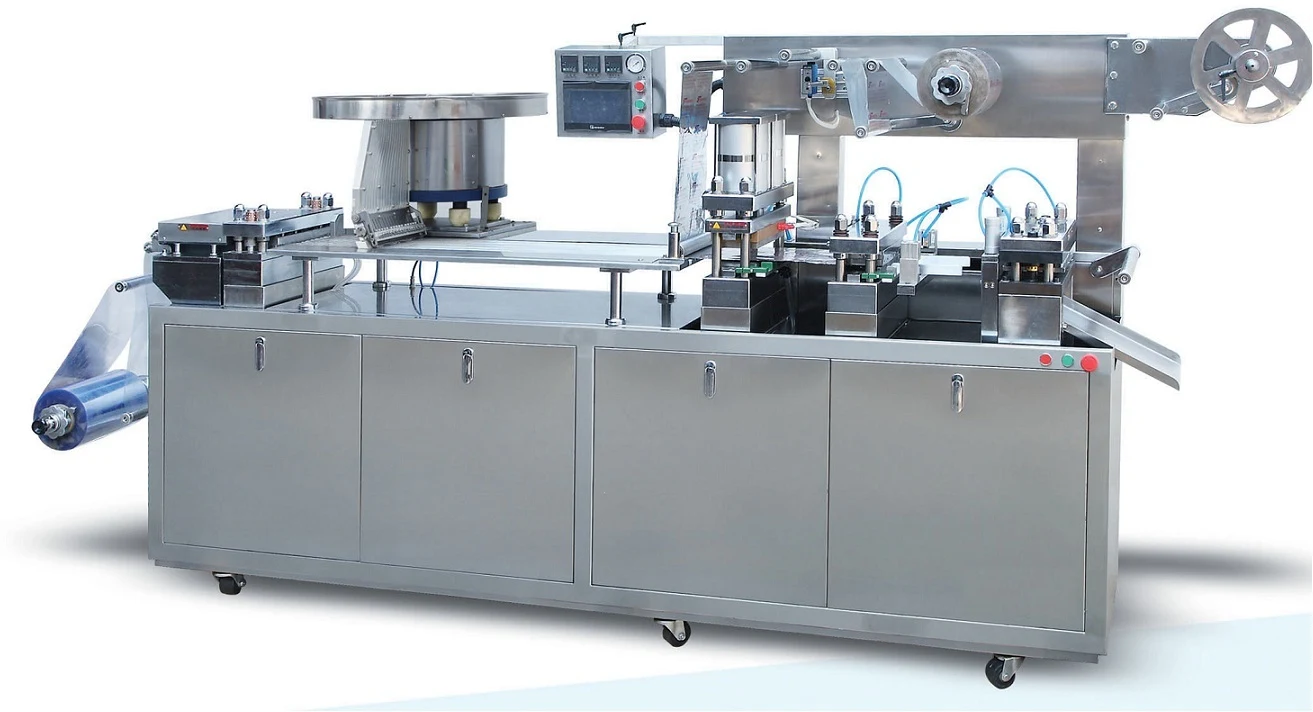

DPP-260 reference configuration from the supplied technical sheet.

DPP-260

A servo-traction blister configuration with adjustable stations and selectable feeders for the product.

ALU-plastic · screw traction: Up to 60 cutting cycles/min
ALU-plastic · roller traction: Up to 70 cutting cycles/min
Depth reference: ALU-plastic 26 mm / ALU-ALU 14 mm

ALU-ALU cutting frequency and the maximum forming area are confirmed for the selected traction variant, material and tooling.

Form → Feed → Seal → Emboss or code → Cut

Reference specifications describe the listed configurations. Output depends on the product, dose or count, package, tooling and operating conditions. Confirm the final model, utilities and trial criteria before ordering.

Specify both webs.

Review forming web, lidding foil, cavity design and sealing requirements as a complete blister system.

Explore blister materials ↗
